PCB Punching

  •  PCB Punch Machine For PCB Assembly

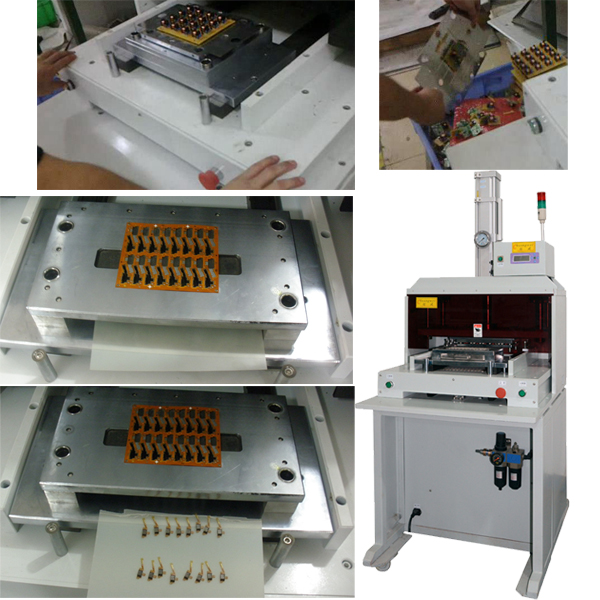

 PCB Punch Machine For PCB Assembly

PCB Punch Machine For PCB Assembly

  • Punch Contribute (T):3 (can custom made up to 30T)
  • Working area (mm):330*220 (can custom made)
  • Working air pressure(Mpa):0.5-0.7
  • fpc/pcb punching machines size (mm):730*810*1700:
  • Product description: FPC PCB Punch Machine PCB Punching Machine
  • INQUIRY

PCB Punching CWPE Features:

1.Machine has strong structure and moves easily with 4 Casters.

2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.

7.Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
8.Use punching mould to cut with high efficiency

9.Can replace multiple mold for product

FPC PCB Punch Machine PCB Punching Machine CWPM Features:

1) Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks

caused by manual.

2) Die toolings is changeable

3) Easy set up of punching dies

4) Loading and unloading PCBs is convenient

5) Easy operation, has safe protection system

6) Air cylinder driven

Our Service:

# 1 day delivery

# 24 hours fast response

# Largest manufactory in South China

# 100% responsible for quality

# 12 years experience

# Free sharpening for blades within 3 months

# Controlled drawings make strict confidentiality for clients
